      Tape Dispensers > Gummed Tape Dispensers > TDH2O5

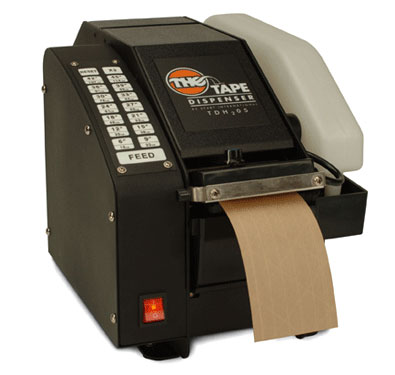

TDH2O5  Electric Gummed "Water Activated" Tape Dispenser
TDH2O5
Ideal for use in any shipping or packaging department!
Feeds, moistens and cuts definite length gummed tapes


A single touch shoots a measured length of tape from 6" to 45" (152.4 to 1143mm)
Large capacity water bottles (46oz., 1.3l)for long intervals between fill-ups
14 pre-set length buttons for easy dispensing and a 2X button to double any preset length
Hold the Feed button for a custom length
Repeat button feeds the last length selected, no need to remember last and ideal for repetitive taping
Quiet long life drive motor only operates when length button is engaged
Stainless steel tape guides and heavy duty, all metal frame for strength and durability
Long life powder coated finish for prevention of corrosion for years of dependable service
Triple brushes moistening system with an ABS plastic corrosion resistant water tray
Adjustable top heater ensures superior tape adhesion, constant water temperature and maximum wetting and activation of tape, which is useful in cold climates
Adjustable water level and easy to refill water bottle with no connecting cables
Uses plain or reinforced kraft paper tapes
Microprocessor control improves reliability and serviceability
Easy touch membrane switch electronic key pad
Simple to use no special operator training
One year parts warranty
Create more secure and better looking packages with these gummed paper tape machines
Kraft Tape, Paper Tape, Carton Sealing, Case Sealer
*All 230V machines are CE approved.
Model #
Tape Width

Maximum Roll Size
Water Bottle Capacity
Number Of Wetting Brushes
Machine Dimensions
Shipping Dimensions
Dispensing Speed
Machine Weight
Shipping Weight
Electrical Requirements
TDH2O5
1.5" to 3" (38 to 76mm)

up to 600 ft roll (182m)
46oz. (1.3l)
3
18" (L) x 11.5" (W) x 11" (H) (457x292x280mm)
21" (L) x 13" (W) x 16" (H) (534 x 330 x 407mm)
up to 45" per sec. (1143mm)
29 lbs (12.16 kg)
32 lbs (14.52 kg)
115V 50/60Hz 5 amps
