Heavy Duty Industrial Tape Dispensers / Heavy Duty Tape Dispenser / TDA080

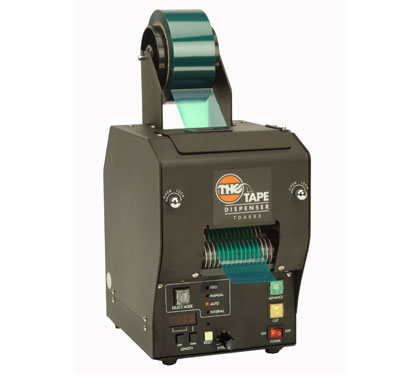

TDA080 Electronic Heavy Duty Tape Dispenser

TDA080

Available Accessories:
ZFootSwitch, zKreaser, TDstand03, TDstand08

Designed for continuous industrial use applications

	Automatically dispenses and cuts virtually any tape - including duct tape
	Compact design and heavy duty metal construction
	Accepts tape widths from .25" (6mm) to 3.15" (80mm)
	Cut lengths from 1.6" (40mm) to 394" (9999mm)
	Accuracy +/- .04" (1mm) (dependant on type of tape)
	9" (251mm) maximum outside diameter roll
	Digital push switch display for easy length adjustments
	Comes with standard 3" (76mm) core
	Adjustable feed intervals
	Safety interlock
	Can dispense some non-adhesive materials
	Switchable voltage (100v/115v or 230v)
	Four operating modes (Manual Feed / Manual Cut, Manual Feed & Cut, Auto Feed & Cut and Interval Feed & Cut)
	Optional foot switch available, see Accessories
	Optional serrated cutting blade for thick tapes, P279S

Model #

Tape Width

Program Memory

Counter/Display

Cut length

Max. outside dia. of roll

Core Diameter

Accuracy of Cut*

Tape Cutter

Feed Type

Length Setting

Weight

Dimensions

Electrical Requirements

TDA080

.25 to 3.15" (6.4 to 80mm)

N/A

2 to 394" (50 to 9999mm)

9" (251mm)

3" (76.2mm)

+/- .04" (1mm)

Automatic

Digital

23 lbs (10.4 kg)

9"(L) x 6.625"(W) x 12"(H) / 229mm(L) x 168mm(W) x 305(H)

100V/115V or 230V 50/60Hz, <2 amps
