      Tape Dispensers > Electronic Tape Dispensers >TDA080 Modifications > TDA080-K

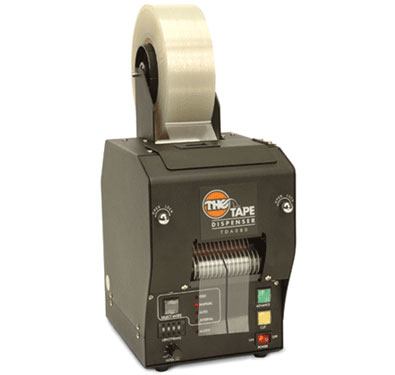

TDA080-K  Electronic Heavy Duty Tape Dispenser for with CREASER
TDA080K
Available Accessories:
ZFootSwitch, TDstand03, TDstand08

This modification puts a crease in thin tapes that have a
tendency to curl up, such as Kapton®

This addition puts a crease in thin tapes that have a tendency to curl up such as Kapton®
Ideal for high production of repetitive taping for industrial applications
Program a defined length and automatically advance and cut tape
Accepts tape widths from .28" (7mm) to 3.15" (80mm)
Cut lengths from 1.6" (40mm) to 394" (9999mm)
Heavy-duty metal construction
All metal gears and advancement rollers
4 Modes of operation. (manual feed-manual cut, manual feed and cut, auto feed and cut and interval feed and cut)
Guillotined cut for a straight edge piece of tape
Digital push switch display for easy length adjustments
Safety interlock
Accuracy +/- .04" (1mm) (dependent on type of tape)
9" (251mm) maximum outside diameter roll
Comes with 3" (76mm) core
115V / 220V units (Model # TDA080K-2 for 220V units)
Optional foot switch available, see Accessories section
*All 230V machines are CE approved.
Model #
Tape Width
Program Memory
Counter/Display
Cut length
Max. outside dia. of roll
Core Diameter
Accuracy of Cut*
Tape Cutter
Feed Type
Length Setting
Weight
Dimensions
Electrical Requirements
TDA080-K
.5 - 3.15" (6 - 80mm)
1
N/A
2 - 394" (50 - 9999mm)
9" (251mm)
3" (76mm)
+/- .04" (1mm)
Automatic
Automatic
Digital
23 lbs (10.4kg)
9 x 6.6 x 12" (229 x 168 x 303mm)
100V/115V or 230V 50/60Hz, <2 amps
