      Tape Dispensers > Electronic Tape Dispensers >TDA080 Modifications > TDA080-LAM

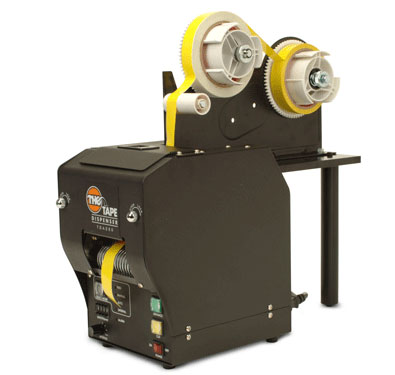

TDA080-LAM  Electronic Heavy Duty Tape Dispenser with Laminator Feature

TDA080LAM

Available Accessories:
ZFootSwitch, zKreaser, TDstand03, TDstand08

Laminates TWO ROLLS of tape together

Laminates two (2) rolls of tape together
Laminates, dispenses and cuts tape to predetermined definite lengths
Automatically dispenses and cuts virtually any tape - including duct tape
Designed for continuous use industrial applications
Compact design and heavy-duty metal construction
Accepts tape widths from .25" (6mm) to 3.15" (80mm)
Cut lengths from 1.6" (40mm) to 394" (9999mm)
Accuracy +/- .04" (1mm) (dependent on type of tape)
6" (152mm) maximum outside diameter roll
Digital push switch display for easy length adjustments
Comes with standard 3" (76mm) core
Four modes of operation (manual feed, manual feed and cut, auto feed and cut, and interval feed and cut)
Safety interlock
Optional foot switch available
*All 230V machines are CE approved.

Model #
Tape Width
Program Memory
Counter/Display
Cut length
Max. outside dia. of roll
Core Diameter
Accuracy of Cut*
Tape Cutter
Feed Type
Length Setting
Weight
Dimensions
Electrical Requirements
TDA080-LAM
.25 to 3.15" (6.4 to 80mm)
1
N/A
2 to 394" (50 to 9999mm)
6" (152mm)
3" (76.2mm)
+/- .04" (1mm)
Automatic
Automatic
Digital
30.2 lbs (13.7 kg)
9"(L) x 6.625"(W) x 12"(H) / 229mm(L) x 168mm(W) x 305(H)
100V/115V or 230V 50/60Hz, <2 amps
