      Tape Dispensers > Electronic Tape Dispensers >TDA080 Modifications > TDA080-LR

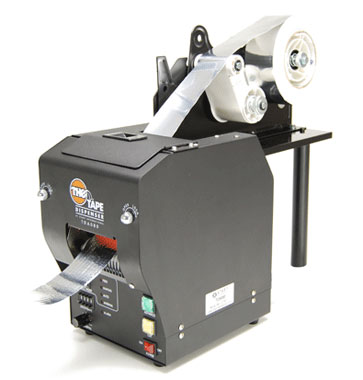

TDA080-LR  Electronic Heavy Duty Tape Dispenser for tapes on LINER
TDA080LR
Available Accessories:
ZFootSwitch, zKreaser, TDstand03, TDstand08

This modification removes the inside liners of tapes, such as
aluminum tape

Ideal for high production of repetitive taping for industrial applications
Program a defined length and automatically advance and cut tape
Accepts tape widths from .25" (6mm) to 3.15" (80mm)
Cut lengths from 1.6" (40mm) to 394" (9999mm)
Heavy-duty metal construction
All metal gears and advancement rollers
4 Modes of operation. (manual feed-manual cut, manual feed and cut, auto feed and cut and interval feed and cut)
Guillotined cut for a straight edge piece of tape
Digital push switch display for easy length adjustments
Safety interlock
Accuracy +/- .04" (1mm) (dependent on type of tape)
Comes with 3" (76mm) core
115V / 220V units (Model # TDA080LR-2 for 220V units)
Optional foot switch available, see Accessories section
*All 230V machines are CE approved.
Model #
Tape Width
Program Memory
Counter/Display
Cut length
Max. outside dia. of roll
Core Diameter
Accuracy of Cut*
Tape Cutter
Feed Type
Length Setting
Weight
Dimensions
Electrical Requirements
TDA080-LR
.25 - 2" (6 - 50mm)
.25 - 2" (6 - 50mm)
1
1
N/A
N/A
2 - 394" (50-9999mm)
2 - 394" (50-9999mm)
6" (152mm)
6" (152mm)
3" (76mm)
3" (76mm)
+/- .04" (1mm)
