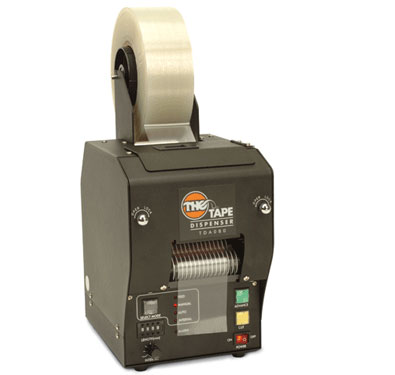

TDA080-NM  Electronic Heavy Duty Tape Dispenser for PROTECTIVE FILMS
TDA080NM
Available Accessories:
ZFootSwitch, zKreaser, TDstand03, TDstand08

Special flat tape advancement rollers designed
for PROTECTIVE FILMS and FOIL TAPES

Ideal for high production of repetitive taping for industrial applications
Program a defined length and automatically advance and cut tape
Accepts tape widths from .25" (6mm) to 3.15" (80mm)
Cut lengths from 1.6" (40mm) to 394" (9999mm)
Heavy-duty metal construction
All metal gears and advancement rollers
4 Modes of operation. (manual feed-manual cut, manual feed and cut, auto feed and cut and interval feed and cut)
Guillotined cut for a straight edge piece of tape
Digital push switch display for easy length adjustments
Safety interlock
Accuracy +/- .04" (1mm) (dependent on type of tape)
9" (251mm) maximum outside diameter roll
Comes with 3" (76mm) core
115V / 220V units (Model # TDA080NM-2 for 220V units)
Optional foot switch available, see Accessories section

Model #
Tape Width
Program Memory
Counter/Display
Cut length
Max. outside dia. of roll
Core Diameter
Accuracy of Cut*
Tape Cutter
Feed Type
Length Setting
Weight
Dimensions
Electrical Requirements
TDA080-NM
.25 to 3.15" (6.4 to 80mm)
1
N/A
2 to 394" (50 to 9999mm)
9" (251mm)
3" (76.2mm)
+/- .04" (1mm)
Automatic
Automatic
Digital
23 lbs (10.4 kg)
9"(L) x 6.625"(W) x 12"(H) / 229mm(L) x 168mm(W) x 305(H)
100V/115V or 230V 50/60Hz, <2 amps
