TDA080-NS  Electronic Heavy Duty Tape Dispenser for FOAM TAPES
TDA080NS
Available Accessories:
ZFootSwitch, zKreaser, TDstand03, TDstand08

Special Non-Stick advancement rollers designed for FOAM Tapes.

Designed for Foam Tapes, High Tack Tapes and Adhesive Transfer Tapes
( tapes should be tested before purchase)
Automatically dispenses and cuts virtually any tape – including duct tape
Designed for continuous use industrial applications
Compact design & heavy-duty metal construction
Accepts tape widths from .25" (6mm) to 3.15" (80mm)
Cut lengths from 1.6" (40mm) to 394" (9999mm)
Accuracy +/- .04" (1mm) (dependent on type of tape)
9" (251mm) maximum outside diameter roll
Digital push switch display for easy length adjustments
Comes with standard 3" (76mm) core
4 Modes of operation. (manual feed, manual feed and cut, auto feed and cut and interval feed and cut)
Safety interlock
Optional foot switch available

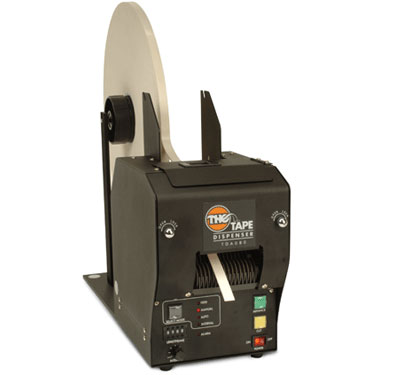

Photo shown with Optional Material Stand (TDSTAND03)


Model #
Tape Width
Program Memory
Counter/Display
Cut length
Max. outside dia. of roll
Core Diameter
Accuracy of Cut*
Tape Cutter
Feed Type
Length Setting
Weight
Dimensions
Electrical Requirements
TDA080-NS
.25 to 3.15" (6.4 to 80mm)
1
N/A
2 to 394" (50 to 9999mm)
9" (251mm)
3" (76.2mm)
+/- .04" (1mm)
Automatic
Automatic
Digital
30.2 lbs (13.7 kg)
9"(L) x 6.625"(W) x 12"(H) / 229mm(L) x 168mm(W) x 305(H)
100V/115V or 230V 50/60Hz, <2 amps
