Automatic / Electronic Heavy Duty Industrial Tape Dispenser / TDA150

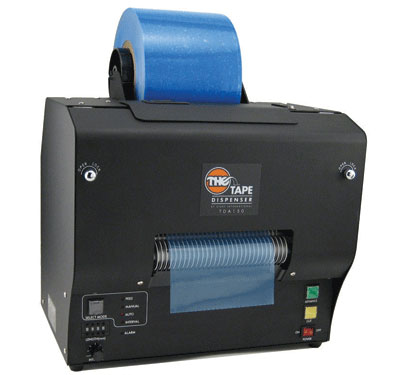

TDA150 Electronic Heavy Duty "WIDE" Tape Dispenser

Available Accessories: TDstand03, TDstand08

Ideal for high production of repetitive taping for industrial applications with "WIDE" tapes

	Program a defined length and automatically advance and cut tape
	Accepts tape widths from .25" (6mm) to 5.9" (150mm)
	Cut lengths from 1.6" (40mm) to 394" (9999mm)
	Heavy-duty metal construction
	All metal gears and advancement rollers
	4 Modes of operation. (manual feed-manual cut, manual feed and cut, auto feed and cut and interval feed and cut)
	Guillotined cut for a straight edge piece of tape
	Digital push switch display for easy length adjustments
	Safety interlock
	Accuracy +/- .04" (1mm) (dependent on type of tape)
	9" (251mm) maximum outside diameter roll
	Comes with 3" (76mm) core

Model #

Tape Width

Program Memory

Counter/Display

Cut length

Max. outside dia. of roll

Core Diameter

Accuracy of Cut*

Tape Cutter

Feed Type

Length Setting

Weight

Dimensions

Electrical Requirements

TDA150

.25 to 5.9" (6 to 150mm)

N/A

1.6 to 394" (40 to 9999mm)

9" (251mm)

3" (76mm)

+/- .04" (+/- 1mm)

Automatic

Digital

38 lbs (17.2 kg)

10" (L) x 13" (W) x 13" (H) 25cm (L) x 33cm (W) x 33cm (H)

117V 50/60Hz, <1amp (220V 50/60Hz available)
