      Tape Dispensers > Electronic Tape Dispensers >TDA150 Modifications > TDA150-NS

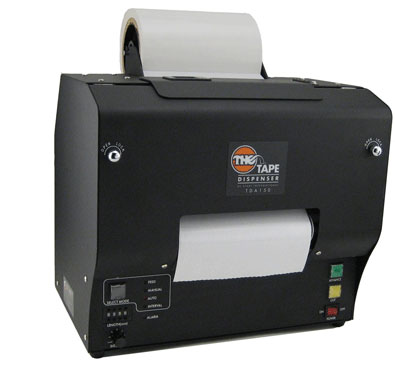

TDA150-NS  Electronic Heavy Duty "WIDE" Tape Dispenser for FOAM TAPES

Available Accessories: TDstand03, TDstand08

Modified with special advancement rollers for
FOAM and HIGH TACK tapes

Ideal for high production of repetitive taping for industrial applications
Program a defined length and automatically advance and cut tape
Ideal for foam and other high tack tapes
Accepts tape widths from .25" (6mm) to 5.9" (150mm)
Cut lengths from 1.6" (40mm) to 394" (9999mm)
Heavy-duty metal construction
All metal gears and advancement rollers
4 Modes of operation. (manual feed-manual cut, manual feed and cut, auto feed and cut and interval feed and cut)
Guillotined cut for a straight edge piece of tape
Digital push switch display for easy length adjustments
Safety interlock
Accuracy +/- .04" (1mm) (dependent on type of tape)
9" (251mm) maximum outside diameter roll
Comes with 3" (76mm) core

*All 230V machines are CE approved.
Model #
Tape Width
Program Memory
Cut length
Max. outside dia. of roll
Core Diameter
Accuracy of Cut*
Tape Cutter
Feed Type
Length Setting
Electrical Requirements
.25 to 5.9" (6 to 150mm)
1.6 to 394" (40 to 9999mm)
9" (251mm)
3" (76mm)
+/- .04" (+/- 1mm)
38 lbs (17.2 kg)
10" (L) x 13" (W) x 13" (H) 25cm (L) x 33cm (W) x 33cm (H)
117V 50/60Hz, <1amp (220V 50/60Hz available)
