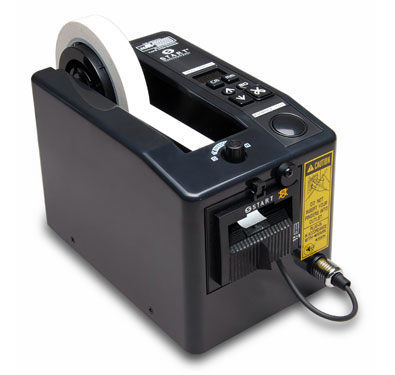

zcM1000D  Electronic Tape Dispenser for EXTRA SHORT tape

zcM1000D Tape Dispenser for Short Tape

Available Accessories:
ZFootSwitch, zcmCounter, Core Holders, zKreaser, zcM1000P550E
External Reel Stands:
zcM1000PO25, zcM1000PO26, TDstand03, TDstand08

Modified circuit board for dispensing EXTRA SHORT
pieces of tape

Modified circuit board for minimum length setting of .2" (5mm)
Accepts tape widths from .28" to 2" (7 t 50.8mm)
Cuts tape lengths from .197" to 39" (5 to 999mm)
(For safety reasons, the use of tweezers is recommended for removing pieces of tape under 15mm)
Ideal for medium to high production facilities
Automatically advance and cut tape
Digital length adjustment
Adjustable pressure feed to help prevent curling of tape
Manual override of preset lengths
Photocell actuated feed mechanism & cutter or push-button feed & cut
Cabinet made from flame retardant anti static material (auto ignition of 896° F / 480° C)
Comes with a 3" (76mm) core, others available, see Accessories section
Accuracy of tape length is +/-.04" (1mm), dependent on type of material
Many available accessories to fit with this machine, see Accessories section

*All 230V machines are CE approved.



Model #
Tape Width
Cut Length
Max. outside dia. of roll
Core Holder*
Accuracy of Cut**
Length Setting
Counter Up or Down
Foot Switch
Weight
Dimensions
Electrical Requirements
ZCM1000D
.28 to 2" (7 to 51mm)
.2 to 39" (5 to 999mm)
7" (178mm)
3" (76mm)
+/- .04" (1mm)
digital (LED)
Optional
Optional
5.3lbs (3.4kg)
9.7" (L) x 5.4" (W) x 5.9" (H) 24.5cm (L) x 13.7cm (W) x 15cm (H)
117V 50/60Hz, <1 amp (220V 50/60Hz available)
