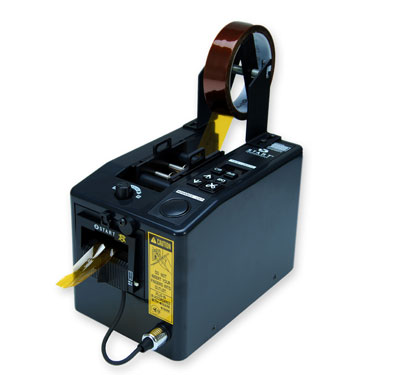

zcM1000K  Electronic Tape Dispenser with CREASER

zcM1000K

Available Accessories:
ZFootSwitch, zcmCounter, Core Holders, zKreaser, zcM1000P550E
External Reel Stands:
zcM1000PO25
, zcM1000PO26, TDstand03, TDstand08

This addition puts a crease in thing tapes that have a
tendency to curl up

Ideal for medium to high production facilities using thin Kapton® and Mylar film tapes
Automatically advance and cut tape
Digital length adjustment
Adjustable pressure feed to help prevent curling of tape
Manual override of preset lengths
Photocell actuated feed mechanism & cutter or push-button feed & cut
Cabinet made from flame retardant anti static material (auto ignition of 896° F / 480° C)
Comes with a 3" (76mm) core, others available, see Accessories section
Accuracy of tape length is +/-.04" (1mm), dependent on type of material
Many available accessories to fit with this machine, see Accessories section
.5 (12.7mm) minimum tape width
Accepts tape widths from .5" to 1.1" (13 to 30mm)
Cuts tape lengths from .79" to 39" (20 to 999mm)


*All 230V machines are CE approved.


The "K" Modification which CREASES thin tapes is also available on:
zcM1100, zcM2000 and zcM2200

Model #
Tape Width
Cut Length
Max. outside dia. of roll
Core Holder*
Accuracy of Cut**
Length Setting
Counter Up or Down
Foot Switch
Weight
Dimensions
Electrical Requirements
ZCM1000K
.5 to 1.1" (12 to 28mm)
.79 to 39" (20 to 999mm)
7" (178mm)
3" 76mm)
+/- .04" (1mm)
digital (LED)
Optional
Optional
5.3lbs (3.4kg)
9.7" (L) x 5.4" (W) x 5.9" (H) 24.5cm (L) x 13.7cm (W) x 15cm (H)
117V 50/60Hz, <1 amp (220V 50/60Hz available)
