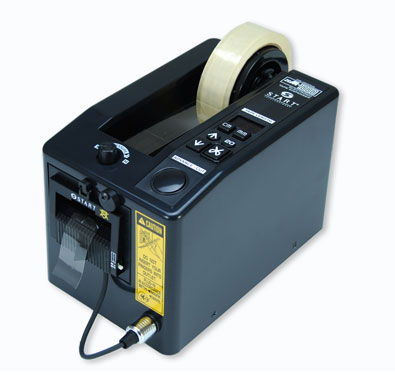

zcM1000T  Electronic Tape Dispenser for THIN tapes

Electric tape dispenser for very thin tapes

Thin-tape dispenser for very thin and difficult to dispense tapes
Ideal for medium to high production facilities using thin polypropylene packing tape
Automatically advance and cut tape
Digital length adjustment
Accepts tape widths from .28" to 2" (7 to 50.8 mm)
Cuts tape lengths from .79" to 39" (20 to 999 mm)
Adjustable pressure feed to help prevent curling of tape
Manual override of preset lengths
Photocell actuated feed mechanism & cutter or push-button feed & cut
Cabinet made from flame retardant anti static material (auto ignition of 896° F/ 480°C)
Comes with a 3" (76mm) core, others available
Accuracy of tape length is +/–.04" (1mm), dependent on type of material
Many available accessories fit this machine. See Accessories section
For safety reasons, the use of tweezers is recommended for removing pieces of tape under 15mm

*All 230V machines are CE approved.

The "T" Modification for THIN tapes is also available on:
zcM1100, zcM2000 and zcM2200

Model #
Tape Width
Cut Length
Max. outside dia. of roll
Core Holder*
Accuracy of Cut**
Length Setting
Counter Up or Down
Foot Switch
Electrical Requirements
.28 to 2" (7 to 51mm)
.79 to 39" (5 to 999mm)
7" (178mm)
3" (76mm)
+/- .04" (1mm)
digital (LED)
5.3lbs (3.4kg)
9.7" (L) x 5.4" (W) x 5.9" (H) 24.5cm (L) x 13.7cm (W) x 15cm (H)
117V 50/60Hz, <1 amp (220V 50/60Hz available)
