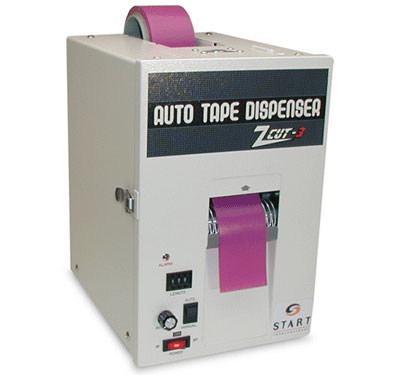

ZCUT3060  Heavy Duty Electronic Tape Dispenser
ZCUT3060 Fully enclosed metal cabinet
Designed for continuous industrial applications

Cuts virtually any tape
Automatic cutter and tape feed
Accepts tape widths from .59" to 2.36" (15 to 60mm)
Cuts tape lengths from 1.97" to 39" (50 to 999mm)
Can be modified to dispense non-adhesive materials
Digital push wheel display for easy length adjustments
Manual or automatic dispensing
Variable feed intervals, automatic delay up to 10 seconds
Safety switch inside front cover
Optional foot switch , see Accessories section

For an alternative to the ZCUT3060 please see the TDA080 with more features and capabilities
Model #
Tape Width
Program Memory
Cut length
Max. outside dia. of roll
Core Diameter
Accuracy of Cut*
Tape Cutter
Feed Type
Length Setting
Electrical Requirements
.59" to 2.36" (15 to 60mm)
1.97" to 39" (50 to 999mm)
7.8" (200 mm)
3" (76mm)
+/-.04" (1mm)
25.3 lbs. (11.5 kg)
9.8"(L) x 7.5"(W) x 11.4"(H) 25cm(L) x 19cm(W) x 29cm(H)
115V 50/60Hz, <2 amps (220V 50/60Hz available)
